MIL-DTL-24347 Monitor, Available Load, 60 And 400 Hertz, A.C., 1 Phase, Electrical Power \(Naval Shipboard Use\)This specification covers an available load monitor \(ALM-2\) to be used for sensing a load on either a 115 or 440 volt single phase circuit of either 60 or 400 hertz \(Hz\). ALM-2 is a direct replacement for ALM-1. ALM-1 is not to be procured for new constructions or replacement purposes.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23


MIL-DTL-24347B
4 INCHES OVERALL DEPTH OF ENCLOSURE-(MAX).

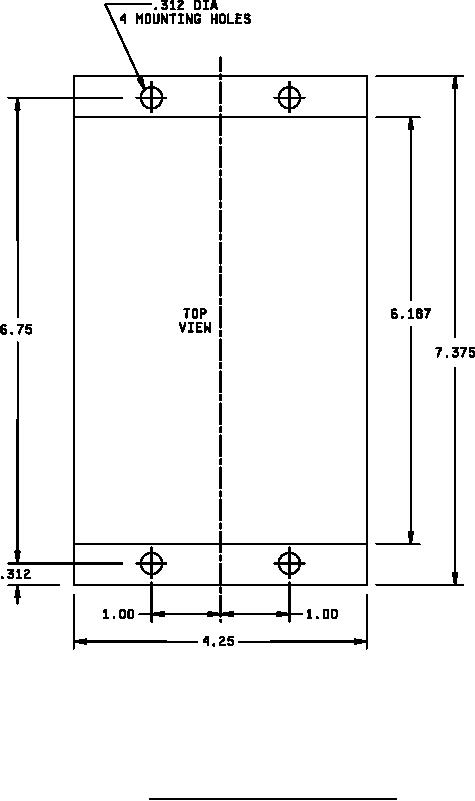

FIGURE 3. Monitor outline and mounting dimensions.
