MIL-DTL-24347B

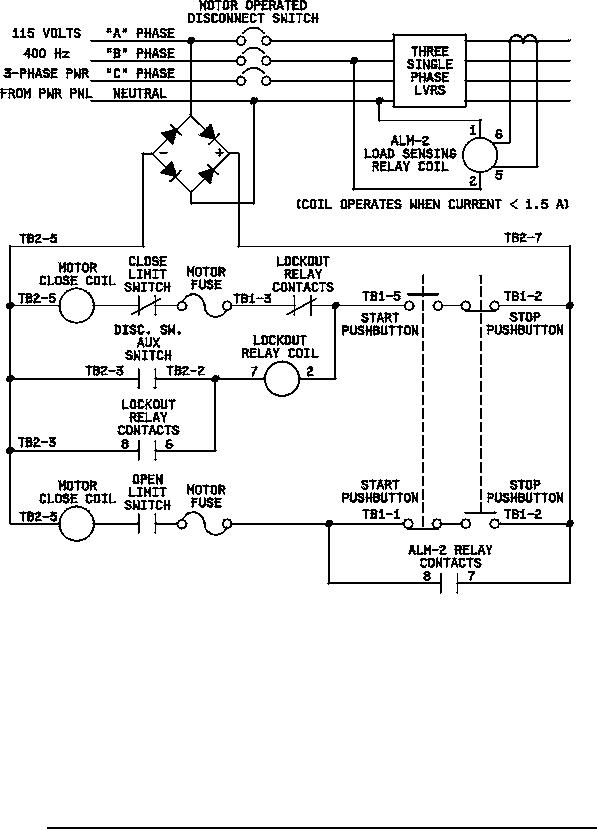

Typical wiring shown for monitor when connected to a circuit breaker with motor operator on a 115 volt circuit.
Monitor normally open static contact is rated at a minimum of 10 amperes continuous, and intermittent rating of 15
amperes.
In each application the 115 volt - 115 volt or 440 volt - 440 volt terminals, as applicable, shall be connected to the
load side of the main circuit disconnect device.
Figure 1B. Typical external wiring connections to monitor for motor operated circuit breaker application.
5
