MIL-DTL-24347B

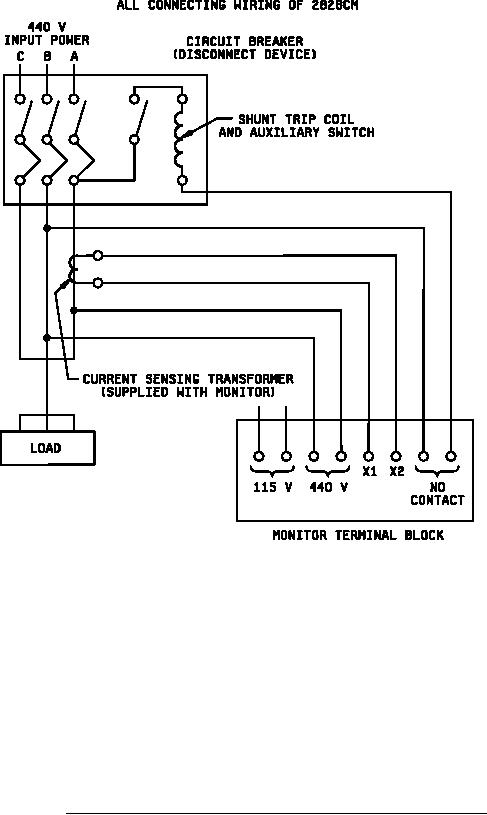

Typical wiring shown for monitor when connected to a circuit breaker with shunt trip coil on a 440 volt circuit. Monitor
normally open static contact is rated at a minimum of 10 amperes continuous, and intermittent rating of 15 amperes.
In each application the 115 volt - 115 volt or 440 volt - 440 volt terminals, as applicable, shall be connected to the
load side of the main circuit disconnect device.
FIGURE 1A. Typical external wiring connections to monitor for shunt trip application.
4
