INCH-POUND W-C-375/18C
12 June 2009
SUPERSEDING W-C-375/18B
04 August 2004
FEDERAL SPECIFICATION SHEET
CIRCUIT BREAKERS, MOLDED CASE, BRANCH CIRCUIT AND SERVICE, TYPE I, SERIES TRIP, THREE POLE
(10 THROUGH 100 AMPERES)
The General Services Administration has authorized the use of this federal specification sheet by all federal agencies.
The complete requirements for procuring circuit breakers described herein shall consist of this document and the latest issue in effect of W-C-375.

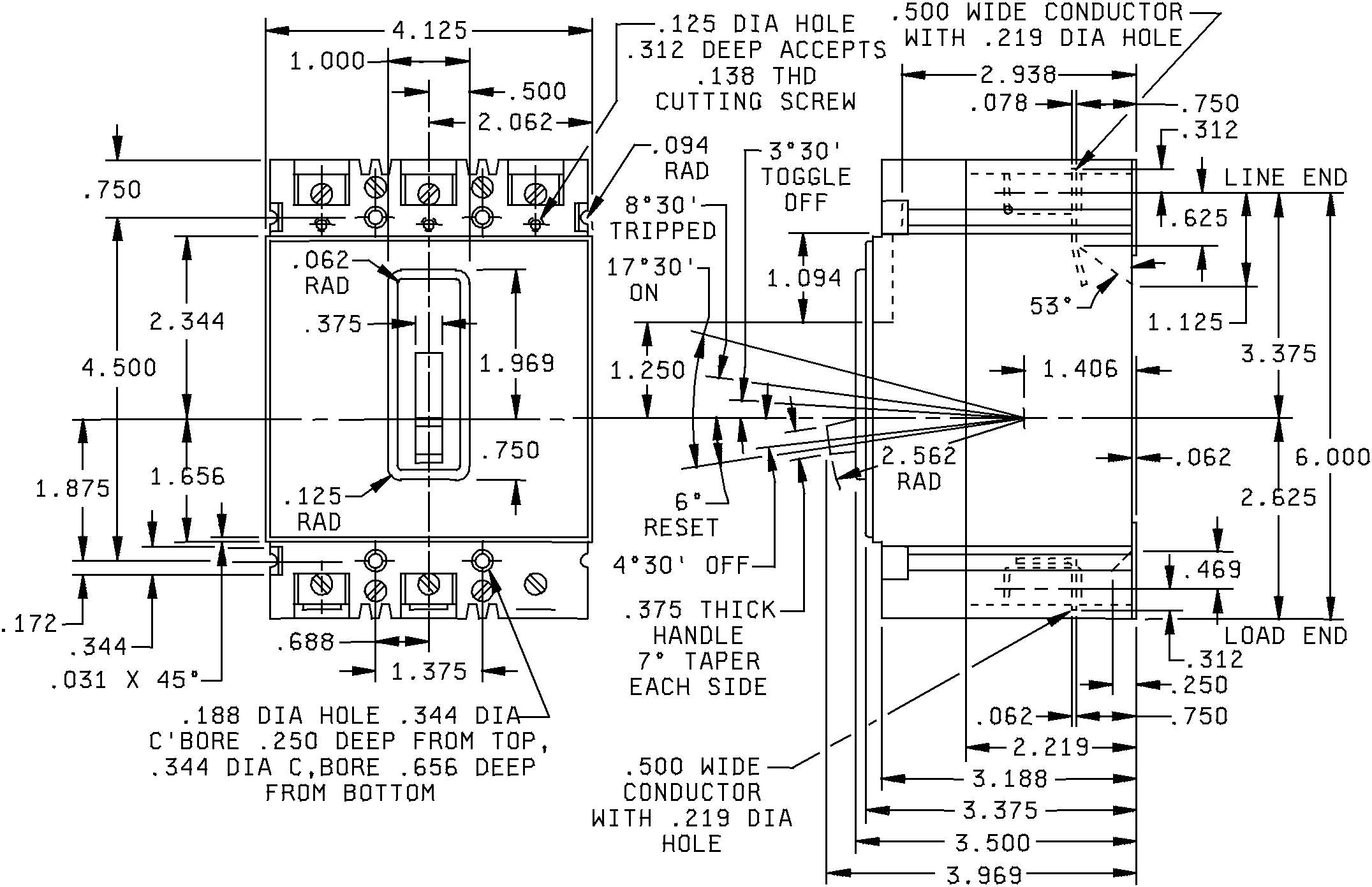

FIGURE 1. Interface and physical dimensions.
AMSC N/A FSC 5925
