MIL-DTL-23928/8C

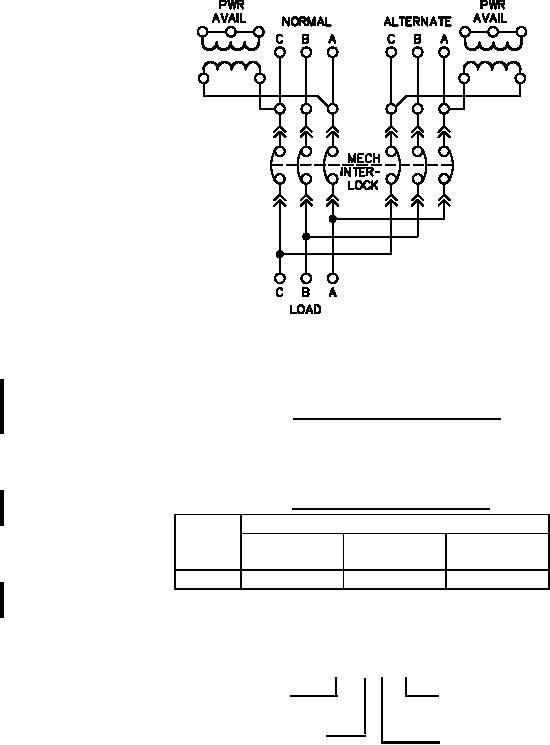

FIGURE 4. Wiring diagram, front view (typical).
TABLE I. Part or identifying numbers (PIN).
Symbol number and enclosure type
Dash
Dripproof
Totally
Watertight
number
(DP)
enclosed (TE)
(WT)
01
2474.2
2474.3
2474.4
Example: The full PIN for a double circuit breaker,
watertight manual transfer panel is:
M23928/8-01 WT
Military specification
Enclosure type
(see table I)
Specification
sheet number
Dash number
(see table I)
4
