MIL-DTL-23928/5C
Letter
Inches
A
17.50 Max
B
7.31 Max
C
13.75 Max
D
13.50
E
11.25
F
15.75
NOTES: Unless otherwise specified herein, tolerances shall be as follows:
Two place decimals - plus or minus 0.02.
Three place decimals - plus or minus 0.005.

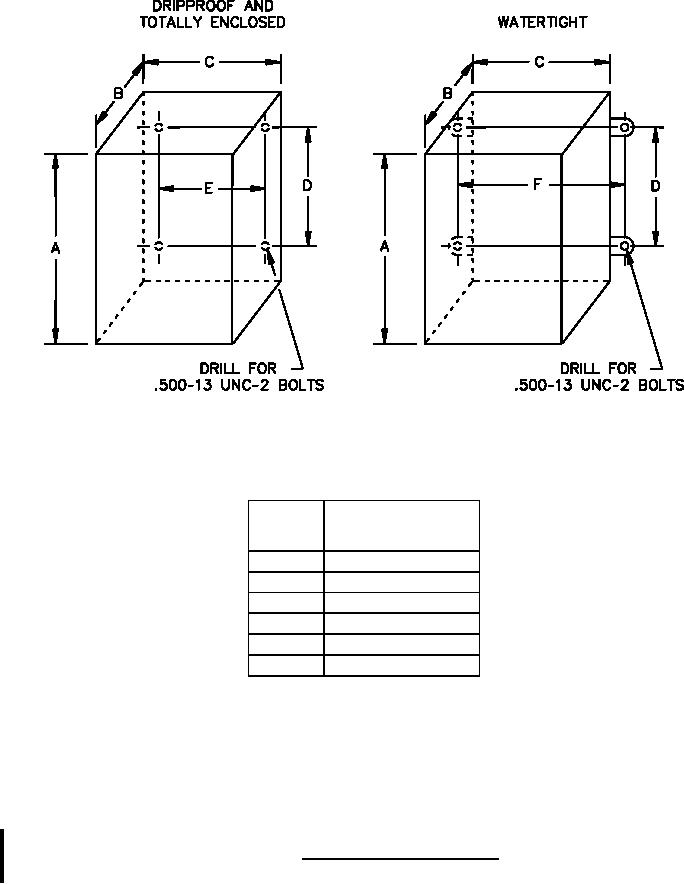

FIGURE 3. Panel and mounting dimensions.
