A-A-55458D
Inches
mm
1.229
31.22
1.800
45.72
2.780
70.61
3.280
83.33
3.812
96.82
4.200
106.68
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified, tolerance is .005 inch (0.13 mm).
3. Location of test and/or reset buttons optional.

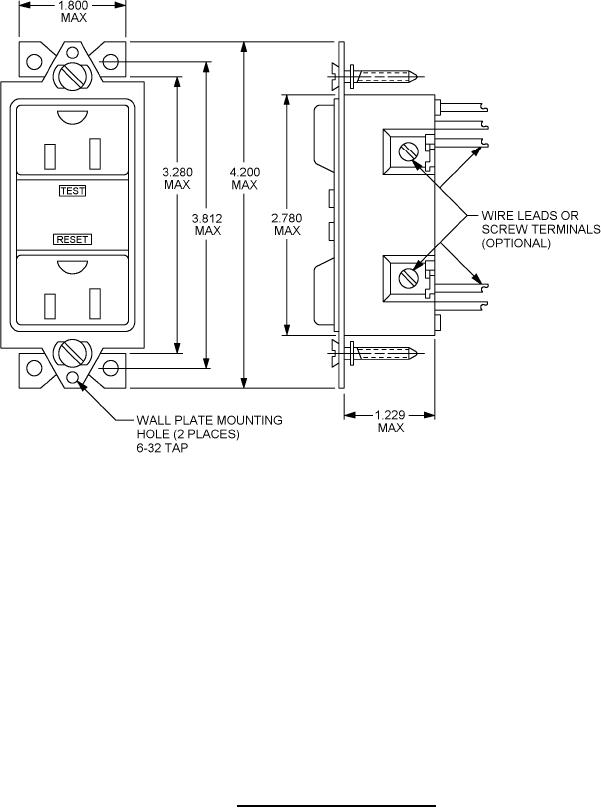

FIGURE 1. Configuration and dimensions.
2
