MIL-PRF-83383/2F
NOTE: Terminals 5A and 5B shall be internally grounded to the mounting flange(s).
Terminals 3 and 6 shall be internally connected.

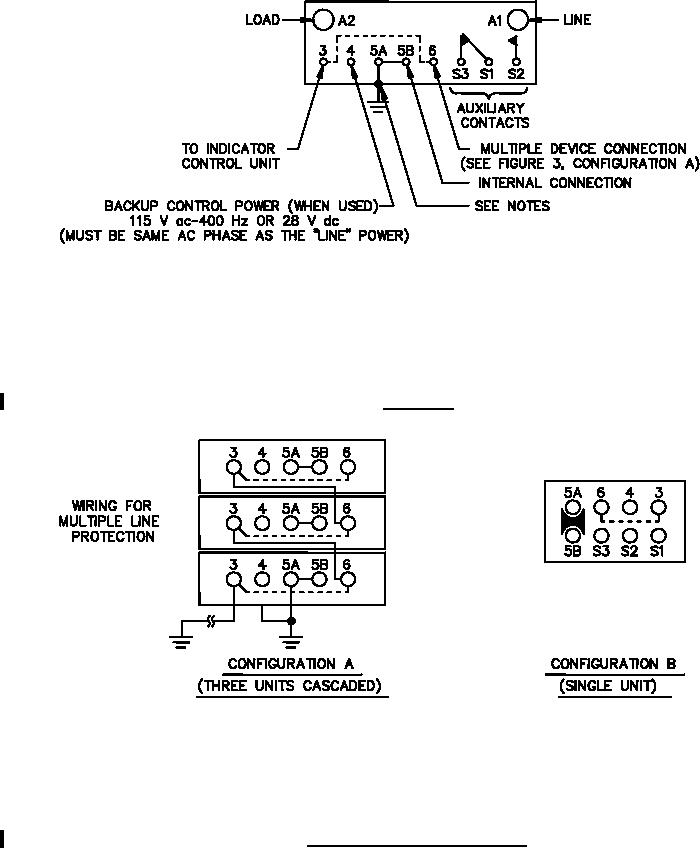

FIGURE 2. Schematic.
NOTE: Terminal junction system (TJS) module shall accept pin contacts P/N M39029/1-100 or -101
as specified in SAE-AS39029/1.
FIGURE 3. Terminal junction system module.
