MIL-PRF-55629E
3-POLE CIRCUIT BREAKER TEST
NOTE: See figure 3 for legend and notes.

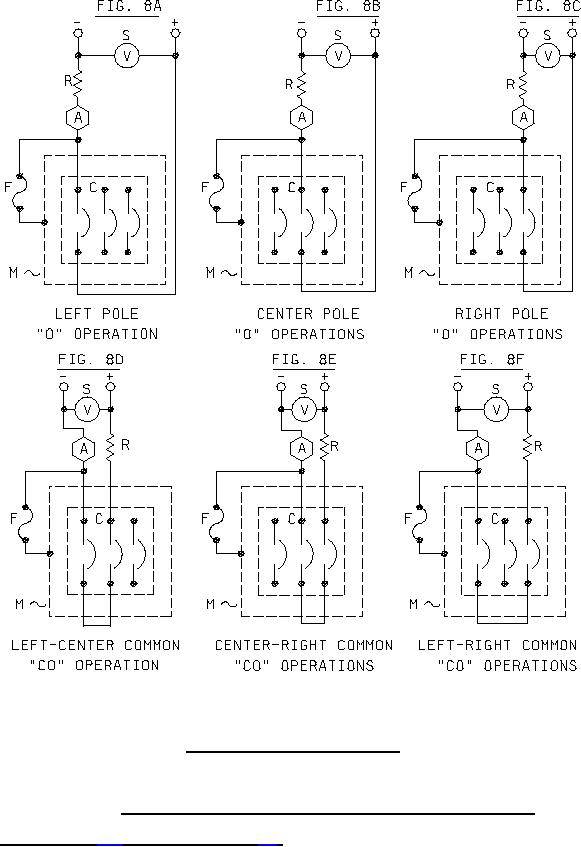

FIGURE 8. DC interrupting capacity test operations (duty cycle) and circuit wiring.
4.8.20 Panel seal (see 3.24) (when specified, see 3.1). Circuit breakers shall be secured by their normal mounting
means to a suitable test jig. A suggested test jig is shown on figure 9. The test jig shall be immersed in a water-filled
glass container containing a wetting agent, with the circuit breaker completely submerged. An air pressure of 15
pounds per square inch gage shall be applied to the test jig for approximately one-half hour. The circuit breaker and
connection to the test jig shall be observed for any visible air bubbles indicative of leakage, either in the form of a
continuous stream, or as bubbles emanating at regular intervals. The test shall then be repeated by applying air
pressure in the opposite direction by reversing the cover.
25
